Redesign and Deployment of a Scalable AWS Infrastructure for Enhanced Performance and Reliability

Redesign and optimize an existing AWS infrastructure to improve scalability, reliability, and performance for a production application, transitioning from a single EC2 instance setup to a highly available architecture with minimal downtime.

• AWS: VPC, Subnets, Route Tables, EC2, Auto Scaling, Elastic Load Balancer (ELB), RDS (MySQL), CloudWatch, CloudTrail, IAM

• Database: MySQL (RDS)

• Networking: NAT Gateway, Security Groups, Encrypted Connections

• Monitoring and Logging: CloudWatch Alarms, CloudWatch Logs, CloudTrail

• Security: IAM, Security Groups, Private/Public Subnets

• Initial Infrastructure Assessment: - Analyzed the existing application infrastructure, which was deployed on a single large EC2 instance hosting both the application and a MySQL database. - Identified potential bottlenecks and single points of failure that could impact performance and reliability.

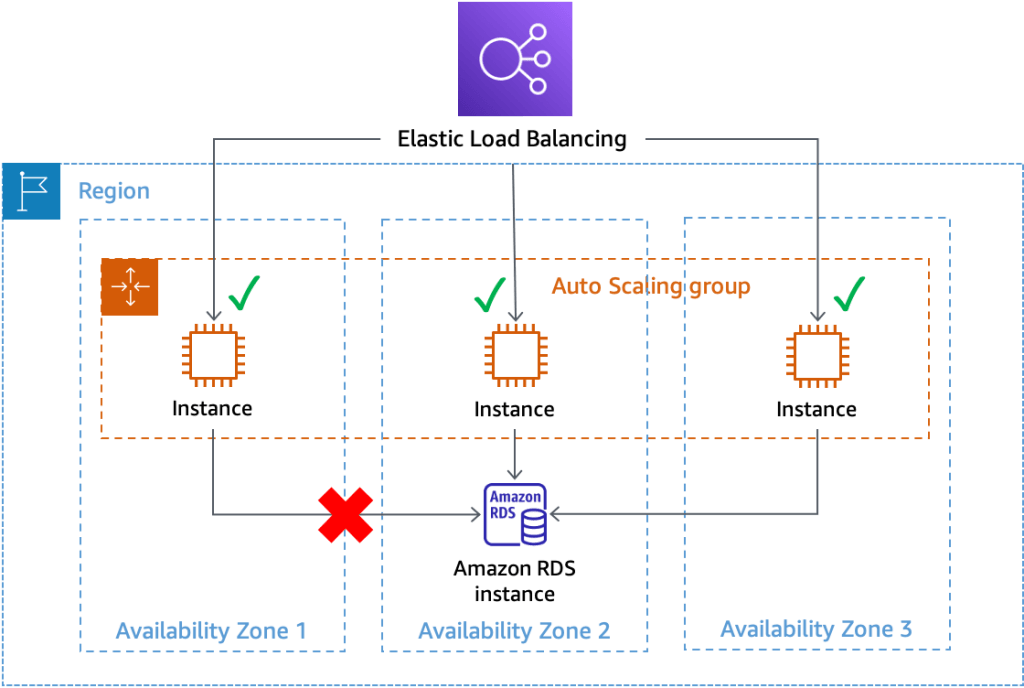

• Infrastructure Redesign: - VPC Configuration: Designed a custom Virtual Private Cloud (VPC) to isolate the application infrastructure, providing enhanced security and control over network traffic. Created multiple subnets across different Availability Zones to ensure high availability. - Subnets and Route Tables: Configured public and private subnets, ensuring that application instances and databases were placed in appropriate subnets for optimal security and performance. Created and managed route tables to control the flow of traffic between subnets and to the internet via a NAT gateway for instances in private subnets. - Auto-Scaling and Load Balancing: Redesigned the application deployment to use an Auto Scaling group with a minimum of 2 EC2 instances, ensuring high availability and scalability. Configured an Elastic Load Balancer (ELB) to distribute incoming traffic evenly across the EC2 instances in different subnets. - Database Migration to RDS: Migrated the MySQL database from the EC2 instance to Amazon RDS (Relational Database Service), placing the database in a private subnet to enhance security. RDS provided automated backups, snapshots, and multi-AZ deployments for improved reliability. - Security Enhancements: Implemented security best practices, including configuring security groups, IAM roles, and encrypted connections for both the application and the database. Ensured that only necessary traffic could access the instances and database.

• Monitoring and Management: - CloudWatch Integration: Set up Amazon CloudWatch to monitor instance performance, including CPU utilization, memory usage, and network traffic. Configured alarms to trigger notifications for unusual activity or resource utilization. - Logging and Troubleshooting: Integrated AWS CloudTrail and CloudWatch Logs for detailed logging and auditing, enabling easier troubleshooting and security monitoring.

• Testing and Validation: - Development Environment Testing: Deployed and tested the new infrastructure in a development environment to ensure that auto-scaling, load balancing, and database migration functioned correctly without impacting application performance. - Performance and Load Testing: Conducted performance testing to validate that the new architecture could handle increased load and provided automatic scaling based on demand.

• Migration to Production: - Minimized Downtime Migration: Successfully migrated the application to the redesigned infrastructure in the production environment with minimal downtime. Coordinated with the development team to ensure a smooth transition and data integrity during the migration. - Post-Migration Validation: Monitored the production environment post-migration to ensure stable operation, quickly addressing any issues that arose during the transition.

Successfully redesigned and deployed a scalable, high-availability AWS infrastructure, improving the application's reliability, security, and performance. The migration to the production environment was completed with minimal downtime, resulting in a more resilient and manageable system that could automatically scale to meet user demand.
